Stainless Steel Push-on Fittings

For maximum corrosion and temperature resistance

Grazie all’assenza di guarnizioni di tenuta, trovano applicazione in caso di temperature molto elevate e dove è necessario convogliare fluidi aggressivi non compatibili con guarnizioni in FPM

At Airex we supply push-on fittings made entirely of AISI 316L stainless steel, an austenitic alloy that stands out for its high resistance, to both corrosion and the action of weathering.

Stainless steel is not easily damaged, it is durable and easy to clean. Also for this reason, the AISI 316L stainless steel fittings are used in various fields: from industrial automation to the food, chemical and pharmaceutical industries.

Our catalog includes various types of stainless steel fittings: T, elbow and straight.

Stainless steel push-on fittings are recommended for connections with PTFE tubes, materials known for high chemical and thermal resistance. Are products safe and reliable, which guarantee the passage of air, water, steam and fluids of various kinds (but not flammable) with a maximum pressure of 25 bar.

TECHNICAL FEATURES

  • Body and nuts in Stanless Steel AISI 316L (1.4404)
  • Recommended connection tubes: PTFE tube
  • Acceptable tube tolerances: +/– 0.07 mm up to Ø 10 mm,
    +/– 0,1 mm up to Ø 12 mm
  • Fluid: Air, water, stames, various non-flammable fluids
  • Working temperature: -40°C / +250°C
  • Maximum pressure: 25 bar

ADVANTAGES

  • Easy and quick to fasten
  • Resistant to corrosion, high temperatures, aggressive and corrosive washes
  • Easy to clean
  • Suitable for multiple uses

APPLICATION FIELDS

  • Pneumatic systems
  • Industrial automation
  • Food industry
  • Chemical industry
  • Pharmaceutical industry

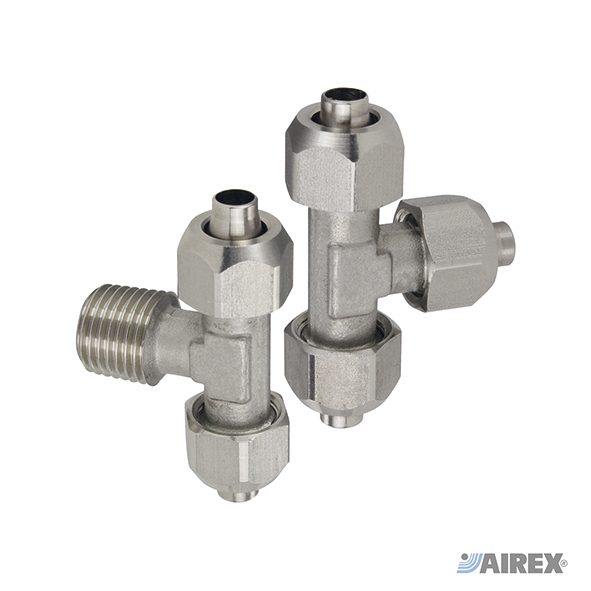

T STAINLESS STEEL PUSH-ON FITTINGS

T STAINLESS STEEL PUSH-ON FITTINGS

ELBOW STAINLESS STEEL PUSH-ON FITTINGS

ELBOW STAINLESS STEEL PUSH-ON FITTINGS

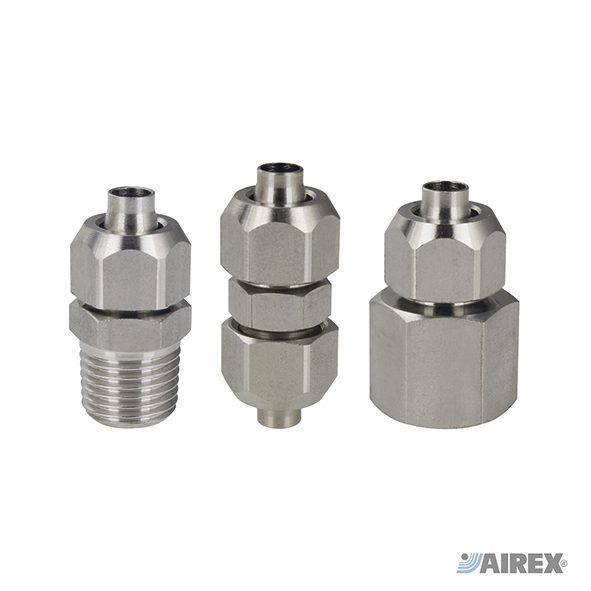

STRAIGHT STAINLESS STEEL PUSH-ON FITTINGS

STRAIGHT STAINLESS STEEL PUSH-ON FITTINGS

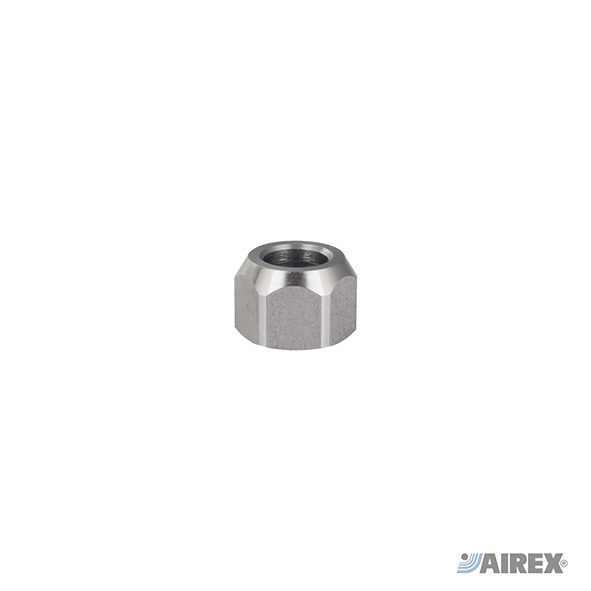

RING STAINLESS STEEL PUSH-ON FITTINGS

RING STAINLESS STEEL PUSH-ON FITTINGS
